55''panel fan featuring industrial exhaust 72006m³/h airflow 1200W power low noise level and wide application

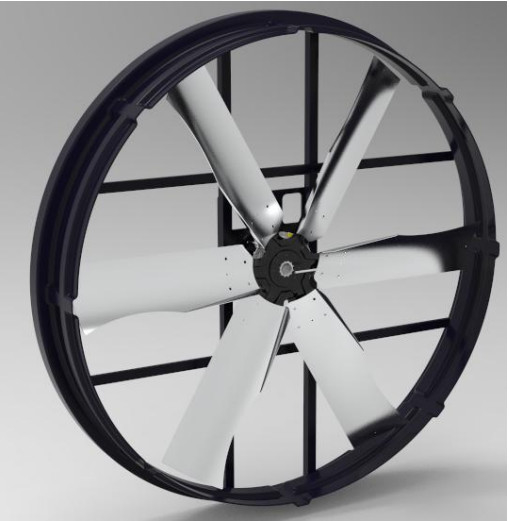

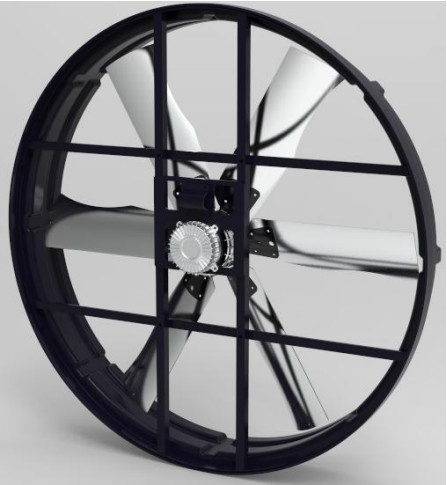

55'' panel fan:

This 55'' panel fan is engineered to provide efficient and effective ventilation.

It features an industrial exhaust fan motor, capable of generating a maximum airflow of an impressive 72,006 cubic meters per hour. The fan blade diameter measures 55 inches (1.4 meters), ensuring a wide coverage.

The air speed is notable, reaching 5.3 meters per second at 6 meters from the fan and 3.9 meters per second at 12 meters.

With an input power of 1200W and a current of 2.1A, it delivers robust performance. The noise level is kept at or below 70dB, allowing for relatively quiet operation.

The frame size is 1598*1598*346mm, and it comes with a 60mm pipe installation option. The power supply is 3Φ/380V/50Hz, and it has a protection level of IP55, ensuring durability and protection against dust and water.

For example, in large industrial workshops, this fan can quickly remove hot air and fumes, improving the working environment. In warehouses, it helps to prevent the accumulation of moisture and maintain the quality of stored goods.

It is an ideal choice for various applications where powerful and reliable ventilation is essential.

Technical Parameters:

Applications:

The 55'' panel fan is highly versatile and finds its applications in multiple fields.

In industrial settings, such as manufacturing plants and processing facilities, it is indispensable. It can effectively remove heat, fumes, and dust, creating a safer and more comfortable working environment. For instance, in a metalworking factory, it helps to evacuate welding fumes and cool down the workspace.

Large commercial spaces like shopping malls and exhibition halls benefit from this fan. It ensures proper air circulation, preventing stuffiness and maintaining a pleasant atmosphere for visitors.

Warehouses and storage facilities rely on it to prevent moisture build-up and protect the stored goods from damage. It helps to keep the air dry and fresh, especially for perishable items.

In agricultural buildings, such as greenhouses and barns, it regulates temperature and humidity, promoting the growth and well-being of plants and livestock.

It is also suitable for sports arenas and auditoriums, where a large volume of air needs to be circulated to provide a comfortable experience for spectators.

In data centers, the fan plays a crucial role in cooling the equipment and maintaining optimal operating conditions.
