Galvanized Steel Livestock Ventilation Fan Blade 72 inches Air Volume 120193m3/h Modern Style

Galvanized Steel Livestock Ventilation Fan Blade 72 inches Air Volume 120193m3/h Modern Style

120193m3/h Livestock Ventilation Fan Blade

72 inches Livestock Ventilation Fan Blade

Galvanized Steel Livestock Ventilation Fan

Place of Origin:

China

Brand Name:

Terrui

Certification:

CE

Model Number:

YBA072EC

CONTACT US

Request A Quote
Product Details
Material:
High-strength Double-layer PE
Current:
4A
Motor:
Outer Rotor Permanent Magnet Brushless DC Motor
Rotation Speed:
345r/min(20%-100% Speed Control)
Power:
3Φ/380V/50HZ
Frame Size:
2032mm*2032mm*387mm
Air Volume:
120193m³/h
Input Power:
2000W
Air Volume/W:
60m³/h
Payment & Shipping Terms
Minimum Order Quantity
2
Price
discuss
Packaging Details
Wooden pallet
Payment Terms
T/T
RELATED PRODUCTS
CONTACT US
86-21-64953307
Contact Now
Product Description

The 72 inches panel fan is an ideal choice for dairy farms. This large-sized fan is designed to provide efficient and effective air circulation throughout the farm. Its powerful motor ensures a strong airflow, helping to keep the environment cool and comfortable for the animals. The fan's wide blade span covers a significant area, ensuring that every part of the dairy farm is reached with refreshing air. Its sturdy construction makes it durable and able to withstand the rigors of the farm environment. Additionally, the fan operates quietly, not disturbing the animals or the working atmosphere. This panel fan is easy to install and maintain, saving time and effort for the farm workers. It is a reliable and essential piece of equipment that contributes to the overall well-being and productivity of the dairy farm. Whether it's for hot summer days or to improve ventilation year-round, this 72 inches panel fan is a valuable addition to any dairy farm.

Galvanized Steel Livestock Ventilation Fan Blade 72 inches Air Volume 120193m3/h Modern Style 0Galvanized Steel Livestock Ventilation Fan Blade 72 inches Air Volume 120193m3/h Modern Style 1

Technical Parameters:

Frame Size(L*W*H) 2032mm*2032mm*387mm
Product Model
YBA072EC
Frame Material
High-strength double-layer PE
Power
3Φ/380V/50HZ
Max Airflow 120193m³/h
Air Speed
6.2m/s- 6m to the fan
4.5m/s-12m to the fan

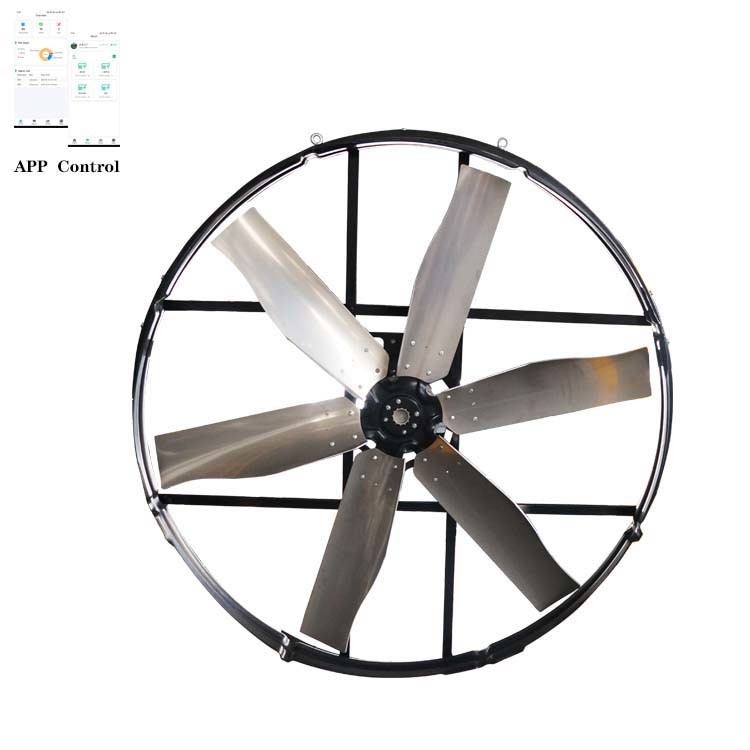

Blade
riveted in one time, good balance and low noise
Blade Diameter 1830mm/72"
Blade Materia 6pcs Alloy

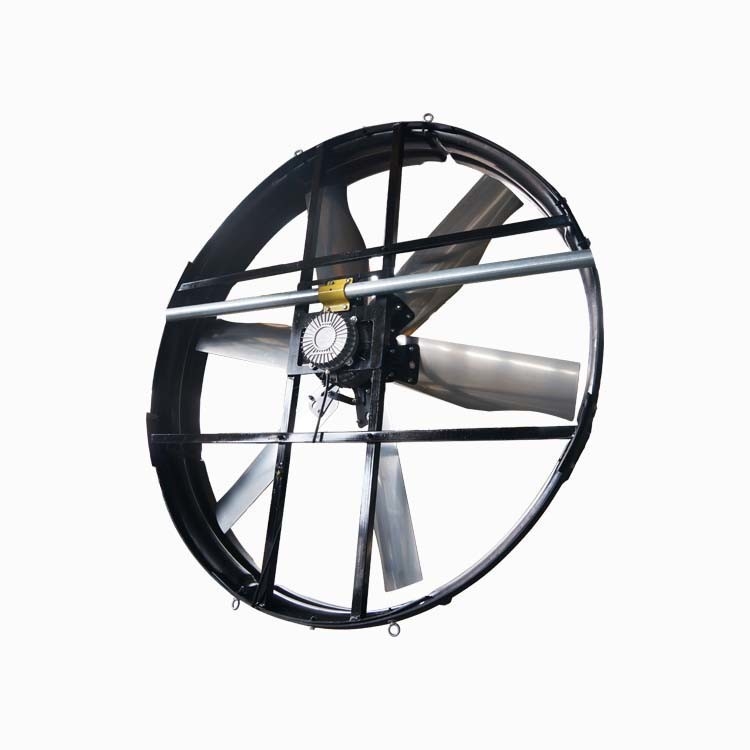

Motor Outer rotor permanent magnet brushless DC motor
Rotation Speed
345r/min(20%-100% speed control)
Current 4A
Input Power 2000W
Protection Level IP55
Noise
≤70dB

Applications:

The 72 inches panel fan is an excellent choice for dairy farms. Its large size makes it highly effective in circulating air throughout the farm, helping to maintain a comfortable environment for the animals. In the hot summer months, this fan can help to reduce the heat stress on the animals, ensuring their well-being and productivity. On dairy farms, where there is often a need for consistent ventilation, this panel fan can play a crucial role. It can be used in barns, milking parlors, and other areas to improve air quality and keep the environment pleasant. Additionally, its wide coverage area allows it to serve multiple purposes simultaneously, making it a valuable addition to any dairy farm. The fan is also designed for durability and long-term use, able to withstand the daily demands of a farm environment. Its reliable performance and ease of operation make it a practical solution for dairy farmers looking to improve the conditions on their farms and ensure the health and productivity of their livestock.



Galvanized Steel Livestock Ventilation Fan Blade 72 inches Air Volume 120193m3/h Modern Style 2
